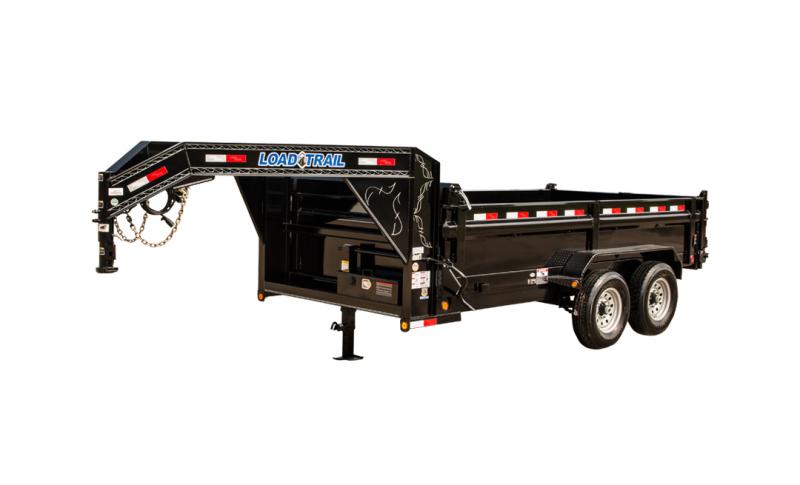

2022 Load Trail GD14 83'' x 14' Tandem Axle Gooseneck Dump Dump Trailer
SPECIFICATIONS Axles: 2-7,000 Lb Drop Cambered Dexter Spring 2 Elec NEV-R-ADJUST Brakes Bed Crossmembers 3" Channel (3.5 lbs/ft) Bed Frame: 2" x 6" Tubing Couplers: 2 5/16" Adjustable Coupler Round (20,000 lb) Crossmembers 5" Channel (6.7 lbs/ft) D-Rings: 3" Standard D-Rings EWR Class DUMP TRAILER Fenders: Weld On Diamond Plate Finish (prep): Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion Finishing Coat/Primer Sherwin-Williams Powdura OneCure Primer w/Polyester TGIC Gloss Powder Topcoat Flooring: 10 Ga. Smooth Plate Frame: 8" I-Beam (10 lbs/ft) Gate 3-Way Spreader Gate GAWR: 7,000 lb (ea axle) GVWR: 14,000 lb Hydrulic Cylinder: 5" x 15.75 x 2" Hydrulic Power Units: Dual Acting Power Unit w/Manual Gravity-Down Valve Jack: 1-10K Drop Leg Spring Return Lights: D.O.T. Stop, Tail, Turn and Clearance LED Neck 10" I-Beam (12 lbs/ft) Product Line Dump and Gooseneck Dump Trailers Product Series: GD14 Ramps: 7' Slide-In Ramps Safety Chains: 18,800 Lb 5/16 x 36 G#70 Scissor Lift Scissor Lift Side Rails: 10 Ga. 24" High Sides Suspension: Multi-Leaf Slipper Spring Tarp: E-Z Lock Mesh Tarp System with Cover Tires: 235/80 R16 LRE Tool Box: Front Tool box Tougue & Neck: 10" I-Beam (12 lbs/ft) Wheels: 16" 8-Hole Sliver Mod Wire Harness: 16 Ga. 5-Way Double Insulated Harness w/7-way plug Models GD8310072 83" x 10' Tandem Axle Gooseneck Dump ...
